2020' Ranger

HULL DECK AND BULKHEADS
• Hand laid-up & Vacuum Bagged GRP construction using PVC foam core/balsa core, multi layers of Quadriaxial fabrics glass roving, isophthalic and orthophthalic polyester resin and other loads approved materials
• Bulkheads made of vacuum bagged PVC foam & quadriaxial fabrics Laminated in place
• Forward watertight compartment
• Aft watertight bulkhead
• Low aspect keels
• Moulded non- skid flooring on deck
• Skeg supported rudders
• Antifouling over epoxy-based primer

DECK FITTINGS STAINLESS STEEL, Grade 316

• Pulpit with fiberglass seats
• Stanchions and stanchion bases
• Double guard wire on side decks
• Swim ladders and Grab Rails
• Bimini structure

DECK EQUIPMENT
• 2 x Harken 46 winches on console
• 6 x mooring cleats on deck
• Chain plates
• 2 x Additional Cleats on front beam
• Wooden walkway between trampolines
• Full length main track for mainsail, cars, jammers and blocks
• self-tacking jib track, car, jammers and blocks
• 1 x pair of trampolines fabric: heavy duty mesh, pvc & webbing reinforcement, grommets all around

PLUMBING
• Pressurized water system
• Deck shower aft port & starboard
• 2 x Manual bilge pumps
• 4 x Automatic electric bilge pumps
• Self-draining cockpit

HATCHES AND WINDOWS
• 2 x GRP locker lids: foredeck under
• 2 x Vetus or similar hatches 510mm x 510mm
• 8 x Vetus or similar Porthole type PXF

RIGGING
• Fractional rig
• Anodised aluminium mast, boom, cross beam and double compression post
• Anchor chain lead internally through compression post
• Color coded sheets and control lines
• Double purchase main halyard
• Headsail halyard and sheets
• Mast supported by double spreaders, intermediate and cap shrouds, and forestay
• Reefing lines

SAILS
• Full Batten Cruising Mainsail 69.98sqm, 9oz
• U Stack with lazy jacks
• 100% Furling Jib Cruising headsail 40.29sqm, 8oz
• Sheets and control lines

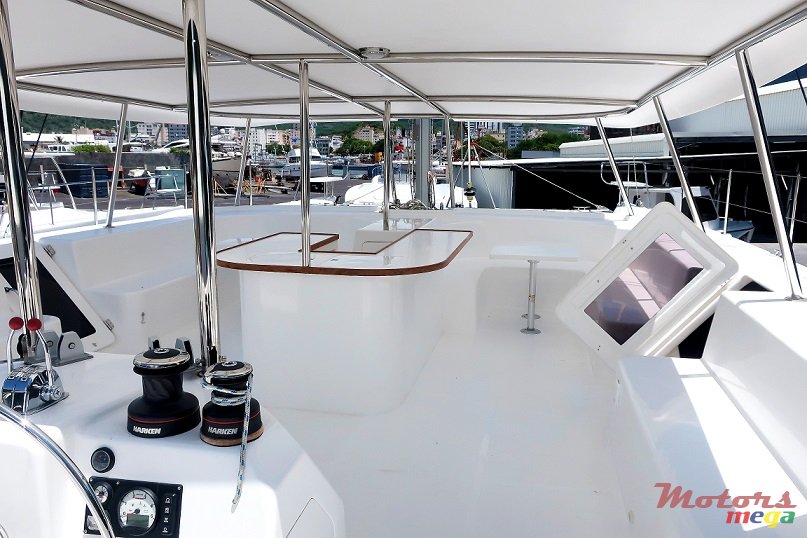

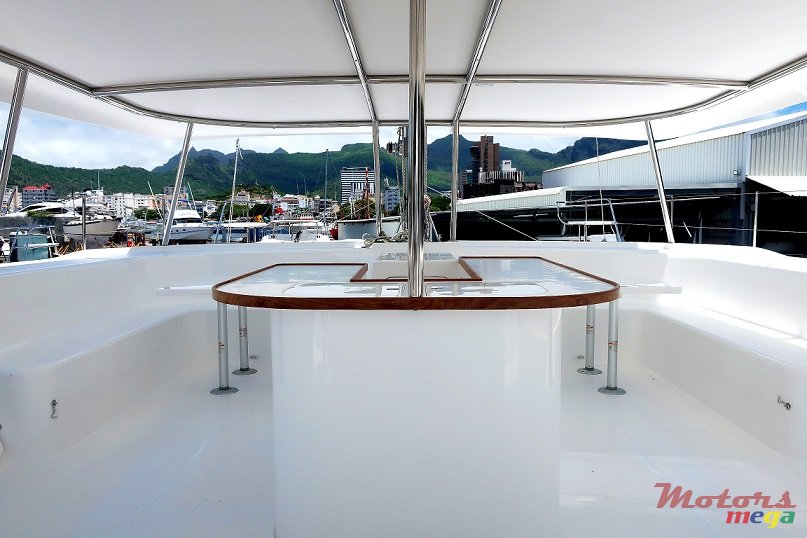

COCKPIT AND AFT DECK AREA
• 2 x Large GRP doors leading into hulls with smoky Perspex
• 2 X GRP removable tables
• 2 x large GRP doors leading to engine compartment

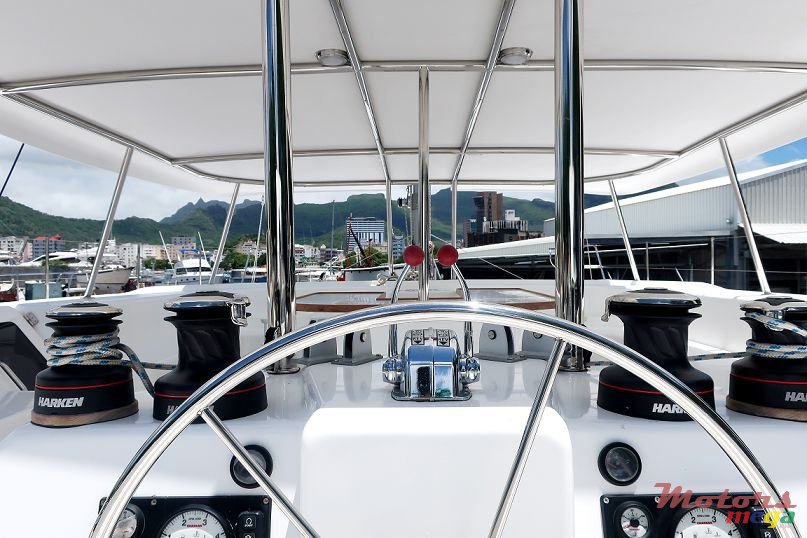

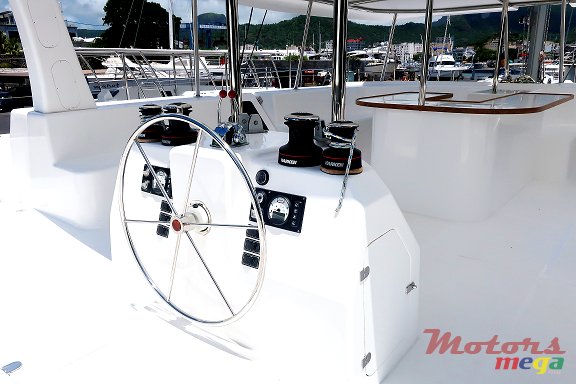

• Aft steering console including:
Halyard storage bags
Instrument console
Stainless steel steering wheel
2 x 46” Winches
Rope Clutches
• GRP Deck cooler box and serving counter
• 5 x Storage lockers in back beam

ACCOMMODATION
GALLEY IN PORT HULL

• Fiberglass work surfaces with moulded in sink
• Modules in moulded GRP
• Pressurized water
• Storage Cabinets above galley module
• Cupboards under sink module

STARBOARD HULL
• Storage lockers inboard
• Shelving and cupboards
• Flooring PVC vinyl

FORWARD CABINS
• Spacious open forepeaks
• Cabin lights
• Font lockers
• Modules in moulded GRP
• Queen size bunk with mattresses

HEAD COMPARTMENTS
• 2 x Heads, 1 x Port, 1 x Starboard
• Manual marine toilet
• Mirror
• Modules in moulded GRP
• Vanity cabinet
• Wash basin

ELECTRICS
• 2 x Engine start batteries (12V) @ 65 AH
• Battery isolator switches
• 4 Ceiling lights on roof structure
• 4 x internal lights in each hull
• 8 x Courtesy lights surrounding cockpit area
• Circuit breaker panel with voltage indicator
• Deck light on mast
• Mast top and lower navigation lights
• 2 x 12V 100AH House bank batteries
• Navigation Lights
• 1 X VSR charging relay from engine to house battery

ENGINE EQUIPMENT
• Yanmar marine diesel engine 53 HP + SD60, including installation & accessories charges:
- C30 keyless panel with sensors & wire harness
- Flexible engine mounts
- Fuel filter / water separator
- Exhaust/water mixing elbow (L-type)
- V-belt cover
- Expansion tank for freshwater cooling system
- Alternator 12 V, 80 A / electric stop solenoid
- Propeller (aluminium 3 blades fixed type)
- Exhaust water-lock with exhaust hose
- Cooling seawater strainer & hose
- Remote control head & cables
- Battery & main switch
• 2 x 55A alternators
• 2 x Instrument panels with engine hour meters
• 3 Blade Fixed Propellers
• High pressure fuel lines
• Drive: SD60 – Sail Drive Hp/Rpm Max: 53 / 3000
• Starting: Electric
